CHL150CC-3A3
CHL

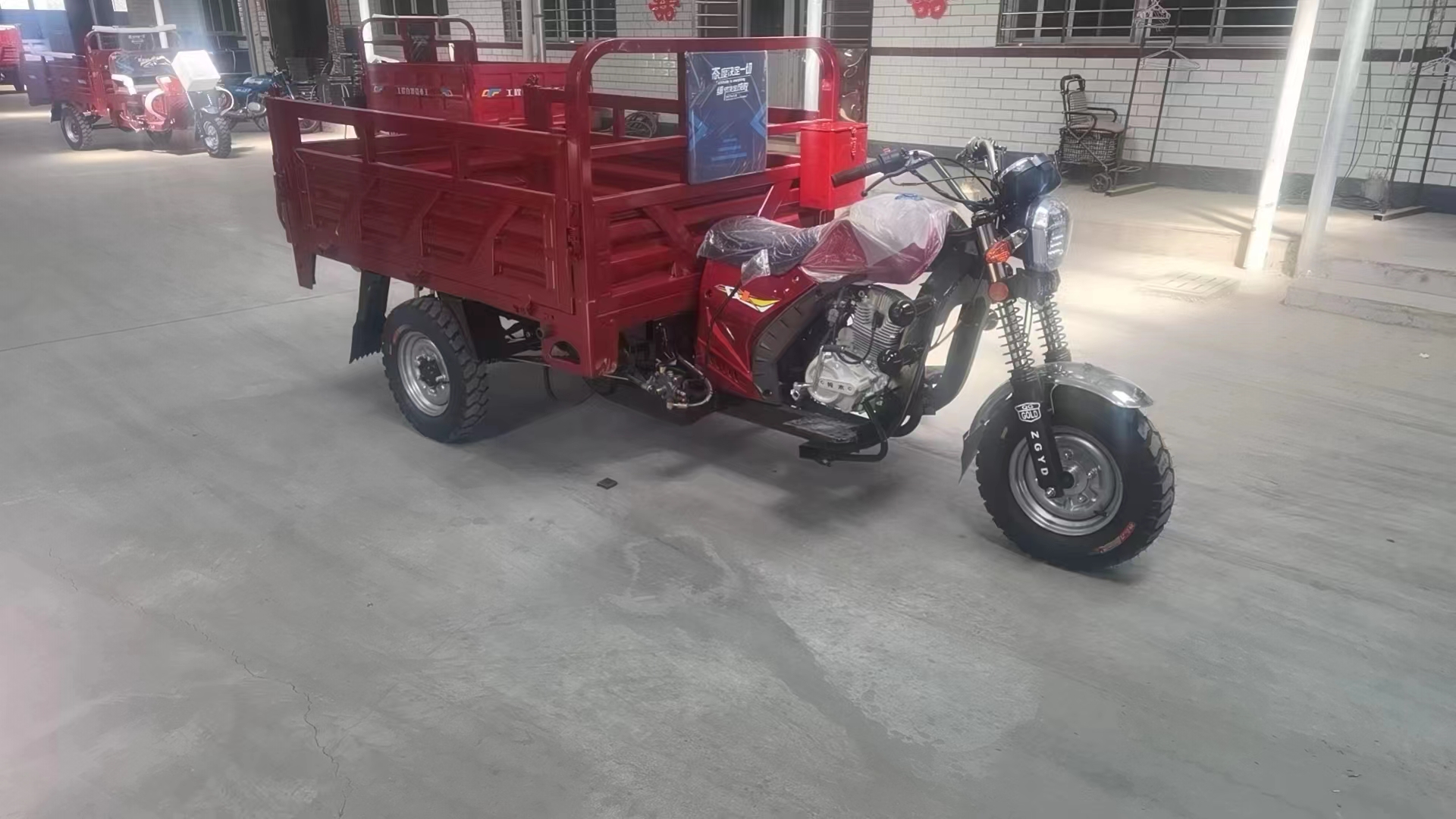

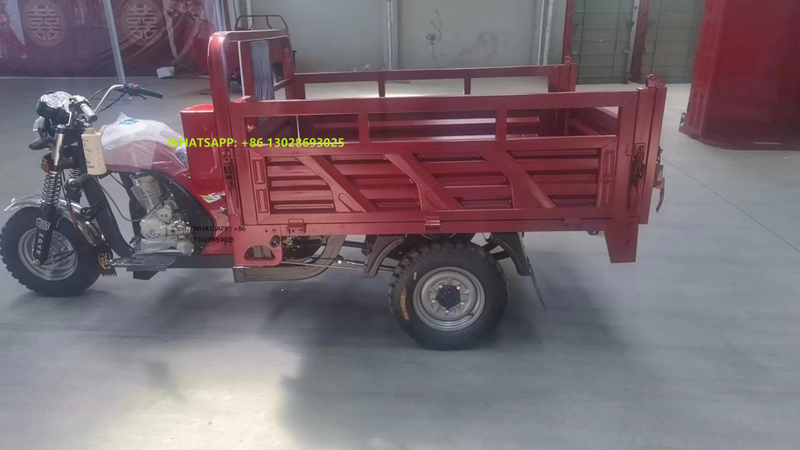

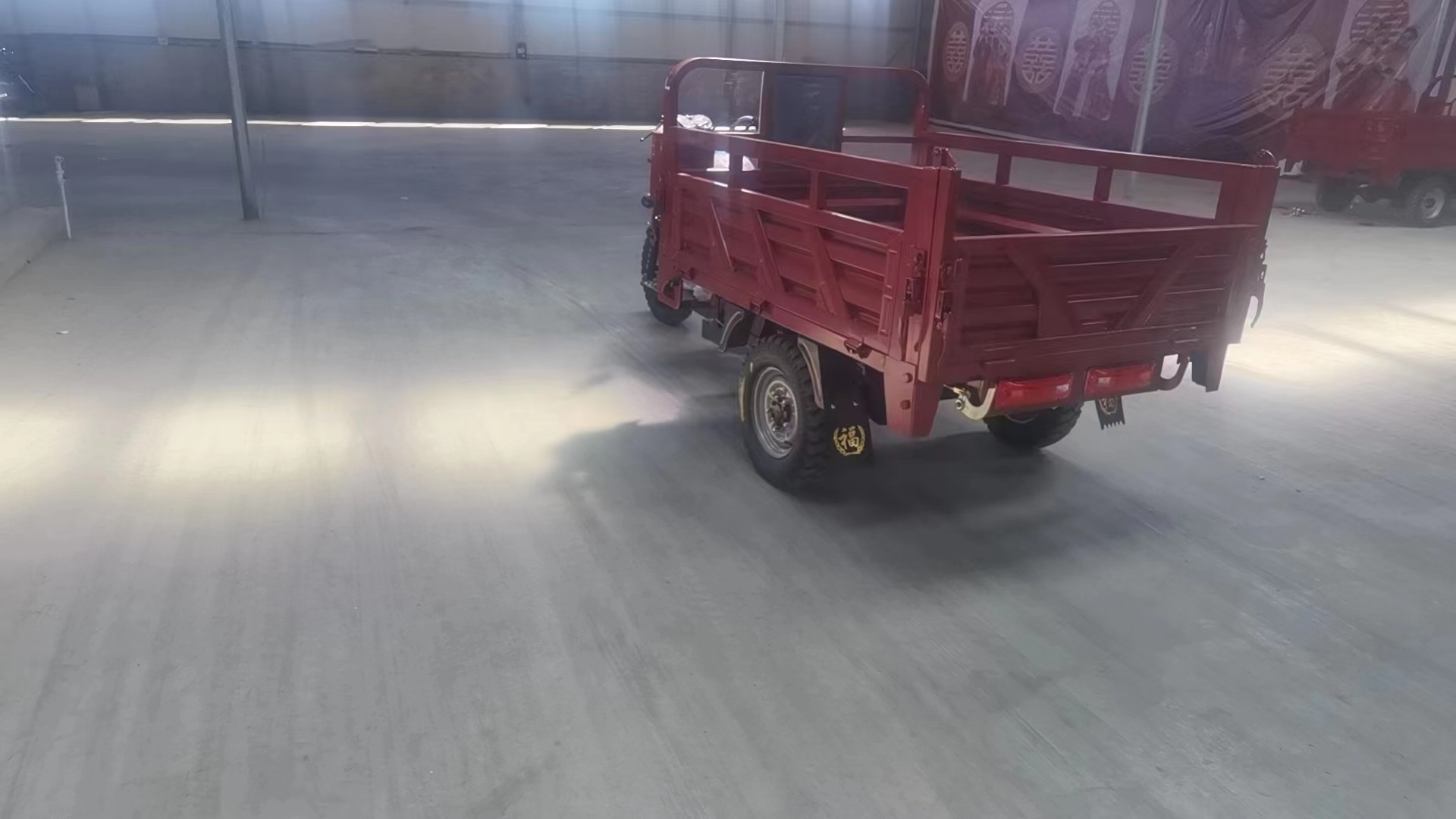

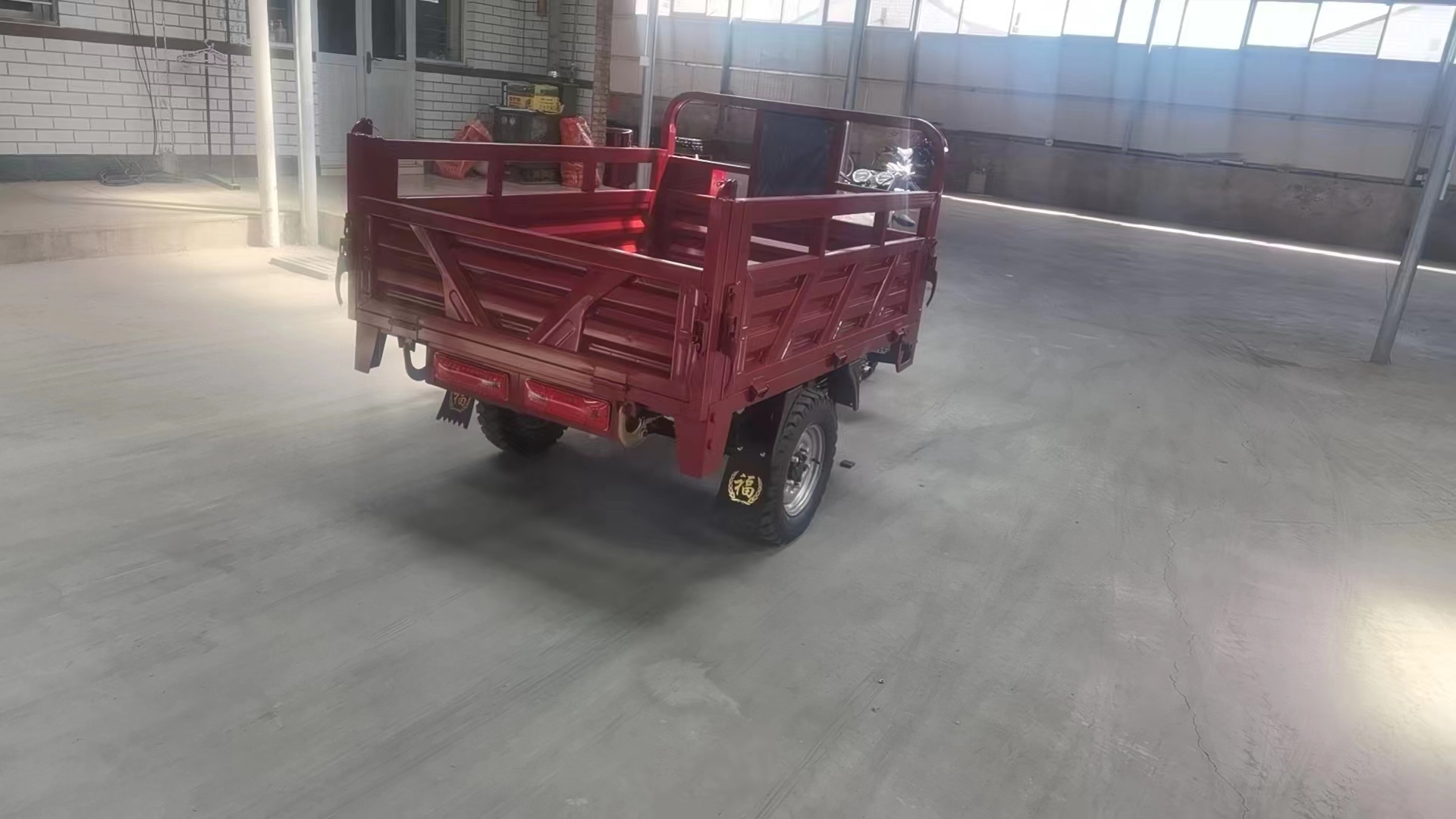

This gasoline-powered three-wheeled vehicle is designed for short-distance cargo transportation, ideal for urban deliveries, market hauling, and farm operations. Equipped with a powerful gasoline engine, it offers strong performance and high load capacity, with a maximum load of up to one ton. Customizations are also available to accommodate even higher weight limits, ensuring flexibility for various transportation needs. Its compact design and agile steering system allow for easy maneuverability in tight spaces, making it an excellent choice for improving transport efficiency in a wide range of environments.
Model | CHL150CC-3A3 |
Displacement | 150cc |
economical consumption fuel (I/100 km ) | 3.5L |
L X W X H (mm) | 3300*1100*1300/3300*1200*1300 |
ENGINE TYPE | 1-cylinder, 4-stroke air cooled |
IGNITION | CDI |
Type of TRANSMISSION | SHAFT, 5 forward + 1 reverse |
MAX SPEED ( km/h) | 60km/h |
NET WEIGHT (kg) | 320kg |
USEFUL CARGO (kg) | 1000kg |
LUBRICATION TYPE | Pressure & Splash |
CLUTCH | Single Clutch |
BRAKE (F/R) | Drum/Drum |
START METHOD | Kick & Electric start |
FUEL TANK CAPACITY | 12L |
TIRE TYPE (F/R) | 4.50-12/4.50-12 |
MEASUREMENT OF CARRIAGE | 1.6m*1.1m/1.6*1.2m |
Rear axle | Full floating rear axle with booster |
FUEL TYPE | Gasoline |
Front Absorber | 43 |
Rear absorber | 6pcs |
Headlamp | LED Light |
